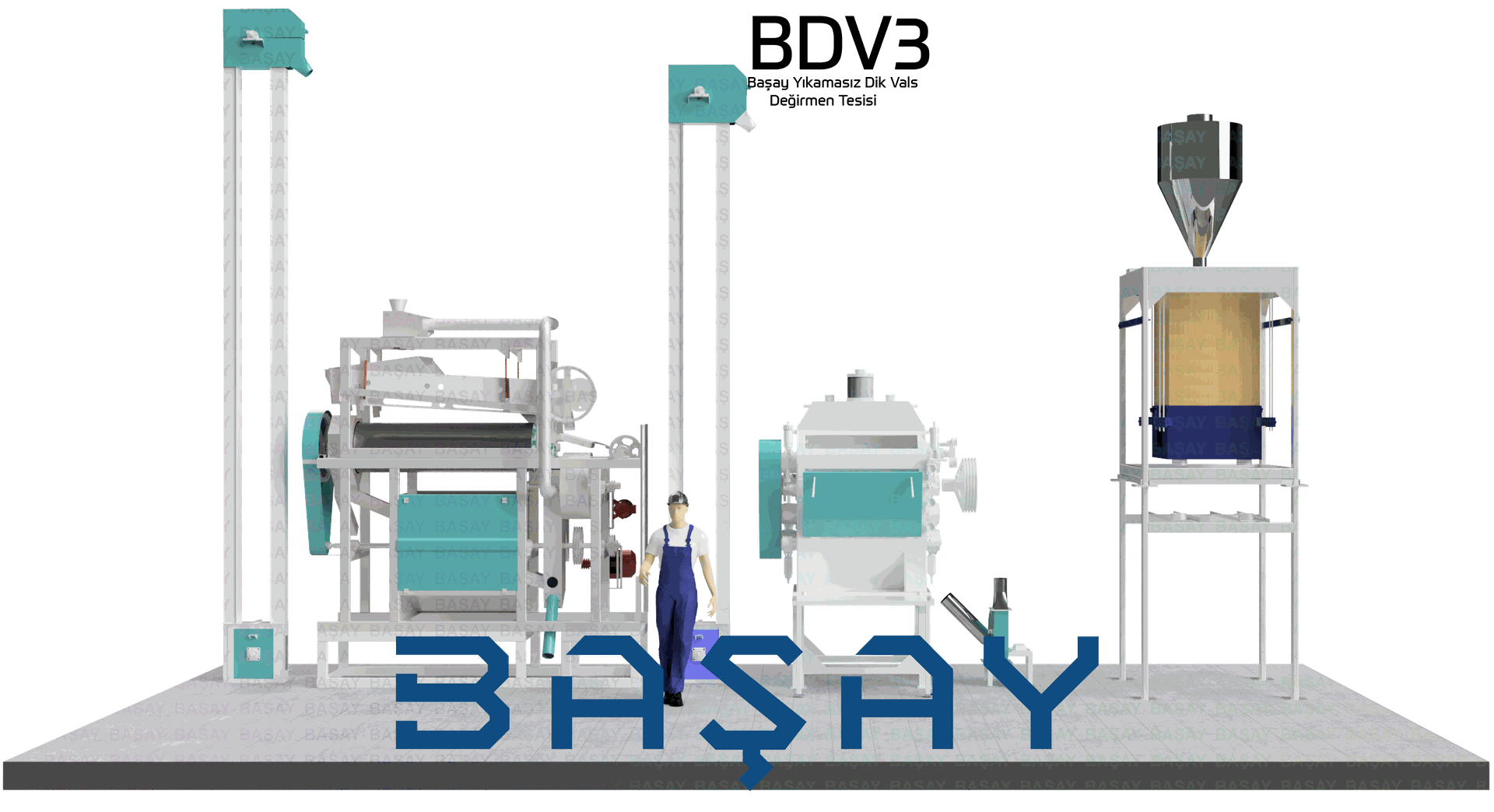

DVT3 Başay Vertical Roller (Dry System) Mill Plant
Başay Vertical Roller Mill Plants are the basis of the modern steel roller grinding system. Wheat is turned into flour in one step.
Main Machines Used in the Facility:
BBT1TF Wheat Cleaning Selector with Brush and Trieur
It is a Başay R&D product that cleans the wheat by air, sieve and shaving and separates it from foreign seeds with a trieur.
BDV1 Vertical Roller Mill
Wheat or similar grains processed into flour in one step. Can work as a stand-alone mill, which fits most of the flour mill buildings.
BSE214 Two Passage 14 Layers Plansifter
After wheat is washed, it stays in this wood stores to naturally evaporate water.
BEF405 Fan
It allows the products to be transported by the air generated by the fan.
BET100 Bucket Elevator
It enables the products to be raised vertically to the desired height.
BTS76 Cyclone
It provides the separation of flour and air.
Capacity
400-700 kg wheat processing per hour
Building
Height 5 meters, Width 3 meters
Length 12 meters
Energy Consumption
3 phase 380V 50 kW/hour
Efficiency
Flour 1 %50-55
Flour 2 %5-15
Bran%20-35
